Nuovi Modelli monofase compatti ed economici
• Tensione di ingresso universale 85 ~ 264VAC
• PFC attivo
• Segnalazione DC OK
• XDR-480E/960E Funzione current sharing per connessione in parallelo (3+1)
• XDR-75E/120E/150E: 30×125.2x116mm
• XDR-240E: 40×125.2x116mm
• XDR-480E: 48×125.2x116mm
• XDR-960E: 96×125.2x116mm
• Protezioni per Corto Circuito / Sovraccarico / Sovra tensione / Sovra Temperatura
• Installazione su guida DIN TS35 / 7,5 o 15
• UL61010 listed (industrial control equipment)
• Conformi EN61000-6-2 (EN50082-2), emissioni ed immunità Classe B (distribuzione non ristretta)
• Raffreddamento a libera convezione d’aria
• Garanzia 3 anni
| Codice | Sigla ET | Caratteristiche | |
| XDR-75E-12 | ETXDR75E12 | In. 85~264Vac, Out.12V/6.3A | |
| XDR-75E-24 | ETXDR75E24 | In. 85~264Vac, Out.24V/3.2A | |
| XDR-75E-36 | ETXDR75E36 | In. 85~264Vac, Out.36V/2.1A | |
| XDR-75E-48 | ETXDR75E48 | In. 85~264Vac, Out.48V/1.6A | |
| XDR-120E-12 | ETXDR120E12 | In. 85~264Vac, Out.12V/10A | |

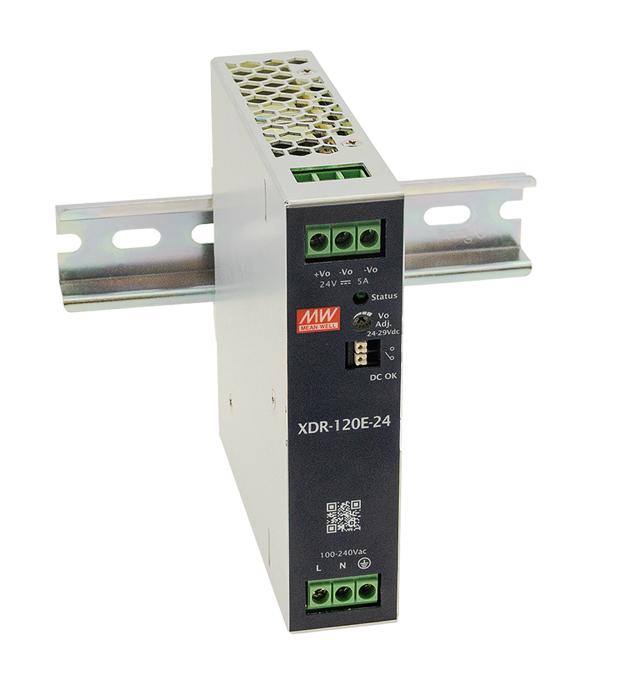

| XDR-120E-24 | ETXDR120E24 | In. 85~264Vac, Out.24V/5A | |
| XDR-120E-36 | ETXDR120E36 | In. 85~264Vac, Out.36V/3.33A | |
| XDR-120E-48 | ETXDR120E48 | In. 85~264Vac, Out.48V/2.5A | |
| XDR-150E-12 | ETXDR150E12 | In. 85~264Vac, Out.12V/10A | |
| XDR-150E-24 | ETXDR150E24 | In. 85~264Vac, Out.24V/5.2A | |
| XDR-150E-36 | ETXDR150E36 | In. 85~264Vac, Out.36V/3.46A | |
| XDR-150E-48 | ETXDR150E48 | In. 85~264Vac, Out.48V/2.6A | |
| XDR-240E-12 | ETXDR240E12 | In. 85~264Vac, Out.24V/20A | |
| XDR-240E-24 | ETXDR240E24 | In. 85~264Vac, Out.24V/10A | |
| XDR-240E-36 | ETXDR240E36 | In. 85~264Vac, Out.36V/6.66A | |
| XDR-240E-48 | ETXDR240E48 | In. 85~264Vac, Out.48V/5A | |
| XDR-480E-12 | ETXDR480E12 | In. 85~264Vac, Out.12V/30A | |
| XDR-480E-24 | ETXDR480E24 | In. 85~264Vac, Out.24V/20A | |
| XDR-480E-36 | ETXDR480E36 | In. 85~264Vac, Out.36V/13.3A | |
| XDR-480E-48 | ETXDR480E48 | In. 85~264Vac, Out.48V/10A | |
| XDR-690E-24 | ETXDR960E24 | In. 180~264Vac, Out.24V/40A | |
| XDR-960E-36 | ETXDR960E36 | In. 180~264Vac, Out.36V/26.6A | |
| XDR-960E-48 | ETXDR960E48 | In. 180~264Vac, Out.48V/20A |
