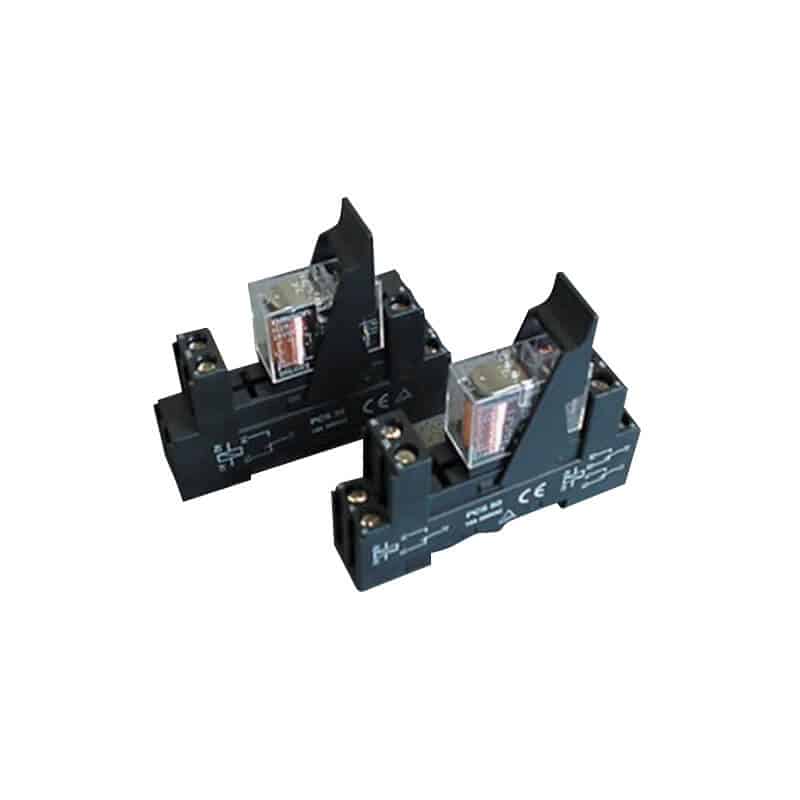

Single-relay interface modules 1 – 2 or 4PDT
Single-relay modules characterised by:
- compact dimensions
- rrapid installation
- SPDT – DPDT and 4PDT output
- wide range of pilot voltages
Execution for mounting on DIN EN50022 and EN50035 rails
| Code | Part Number | Features | Dim. LxHxP |
| 0750 | ET-PCS01/24DC/SC | Single relay, 1SC, 24VDC |
16 x 76 x 69
|
| 0751 | ET-PCS01/24AC/SC | Single relay, 1SC, 24VAC |
16 x 76 x 69
|
| 0752 | ET-PCS01/115AC/SC | Single relay, 1SC, 115VAC |
16 x 76 x 69
|
| 0753 | ET-PCS01/230AC/SC | Single relay, 1SC, 230VAC |
16 x 76 x 69
|
| 0754 | ET-PCS01/24DC/2SC | Single relay, 2SC, 24VDC |
16 x 76 x 69
|
| 0755 | ET-PCS01/24AC/2SC | Single relay, 2SC, 24VAC |
16 x 76 x 69
|
| 0756 | ET-PCS01/115AC/2SC | Single relay, 2SC, 115VAC |
16 x 76 x 69
|
| 0757 | ET-PCS01/230AC/2SC | Single relay, 2SC, 230VAC |
16 x 76 x 69
|
| 0746 | ET-PCS01/24DC/4SC | Single relay, 4SC, 24VDC |
27 x 75 x 79
|
| 0747 | ET-PCS01/24AC/4SC | Single relay, 4SC, 24VAC |
27 x 75 x 79
|
| 0748 | ET-PCS01/115AC/4SC | Single relay, 4SC, 115VAC |
27 x 75 x 79
|
| 0749 | ET-PCS01/230AC/4SC | Single relay, , 4SC, 230VAC |
27 x 75 x 79
|
| 0761 | ET-PCS01/24DC/4SC/M | Single relay, spring terminals, 4SC, 24VDC |
31 x 84 x 84
|
| 0762 | ET-PCS01/24AC/4SC/M | Single relay, spring terminals, 4SC, 24VAC |
31 x 84 x 84
|
| 0763 | ET-PCS01/115AC/4SC/M | Single relay, spring terminals, 4SC, 115VAC |
31 x 84 x 84
|
| 0764 | ET-PCS01/230AC/4SC/M | Single relay, spring terminals, 4SC, 230VAC |
31 x 84 x 84
|
| 0742 | ET-MDP/D/6-220DC | Diode + led protection module | |
| 0743 | ET-MDP/LD/D/6-24DC | Modulo di protezione con diodo e led | |
| 0744 | ET-MDP/RC/24-60/AC | RC protection module (up to 60Vac) | |
| 0745 | ET-MDP/RC/110-240/AC-DC | RC protection module (up to 240Vac) |
