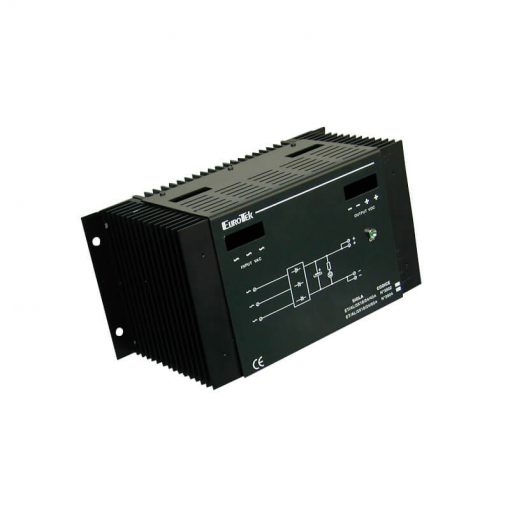

Threephase filtered power supply
Series of linear filtered power suppliers. The line includes three-phase versions with direct input from line (3×400 Vac), 15 and 25A; and three-phase versions with low voltage input ( 3x18Vac), from 15 to 60A.
NOTE: the nominal current value shall be referred to continuos loads.
| Code | Part Number | Features | Dim. LxHxP |
| 3900 | ET-AL/3×18/24/15A | In 3x18Vac – Out 24Vcc/15A |
130x120x110
|
| 3901 | ET-AL/3×18/24/25A | In 3x18Vac – Out 24Vcc/25A |
130x120x110
|
| 3902 | ET-AL/3×18/24/40A | In 3x18Vac – Out 24Vcc/40A |
270x120x160
|
| 3904 | ET-AL/3×18/24/60A | In 3x18Vac – Out 24Vcc/60A |
270x120x160
|
| 3910 | ET-AL/380/24/15A | In 3x400Vac – Out 24Vcc/15A |
190x150x260
|
| 3911 | ET-AL/380/24/25A | In 3x400Vac – Out 24Vcc/25A |
190x150x260
|
